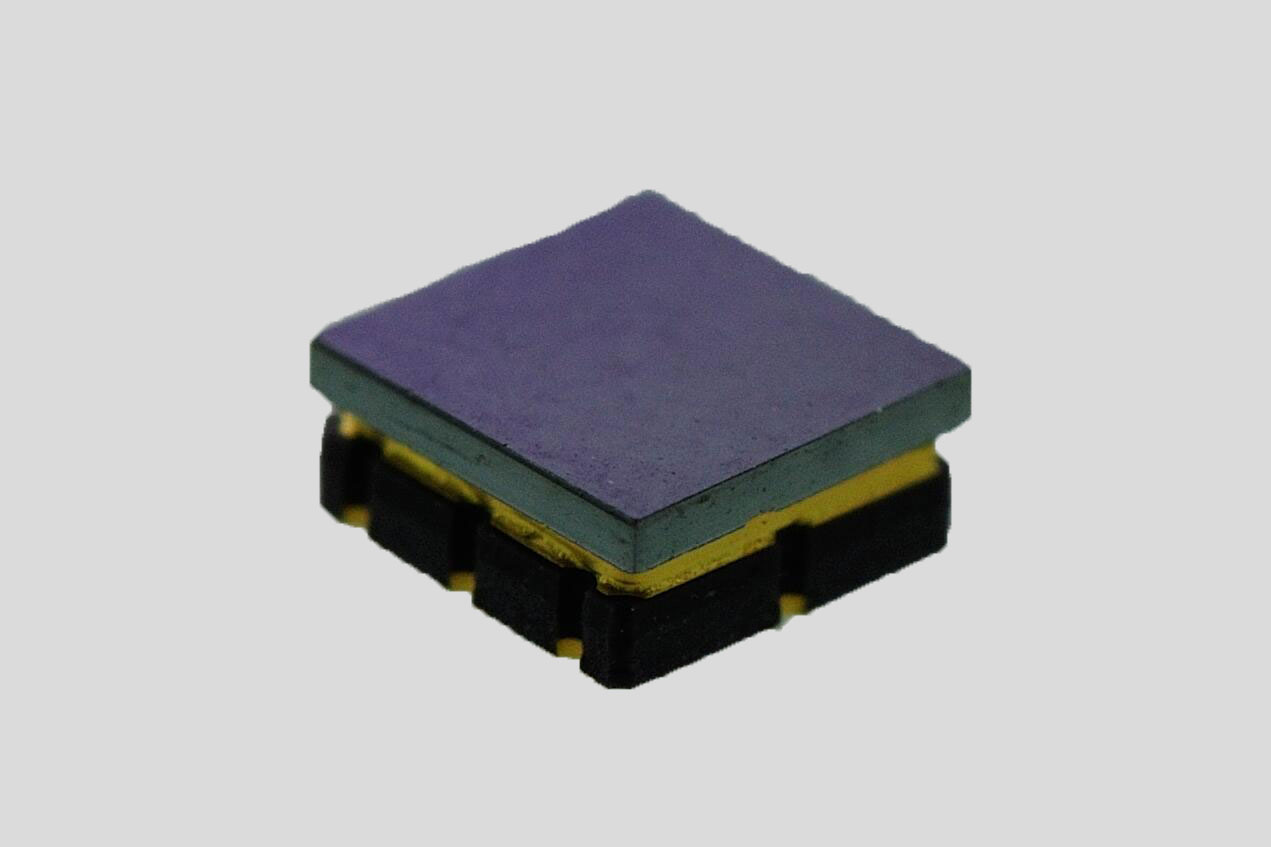

Surface Mount Ceramic Housing
Thermistor temperature reference includes
high sensitivity
application
Non-contact temperature measurement
Universal thermometry
TO-5 metal package integrated infrared absorption filter
Built-in thermistor
Sensitivity has a low temperature coefficient
Suitable for ear thermometers and pyrometers
Symbol | Typ | Units | Remark | |
Sensitive area | A | 1.0 | mm2 | Absorber area |
Thermopile resistance | RTP | KΩ | ||
Responsivity | R | 210±50 | V/W | 500K, with filter cut-on 5.5 um |
Time constant | τ | 15 | ms | |
Noise voltage | VN | 35.2 | nV/Hz1/2 | |
Specific detectivity | D* | 2.10*108 | cmHz1/2/W | 25ºC |
TC of resistance | TCRTP | 0.08±0.04 | %/K | -40ºC ~100ºC ambient |
Field of view | Fov | 90 | Degrees | At 50% intensity points |
Thermistor resistance | 100±3 | KΩ | 25ºC | |
β-value | 3950±20 | K | Defined at 25ºC/50ºC |
